Where is fuse for dashboard gauges for a 2004 silverado

Table of Contents

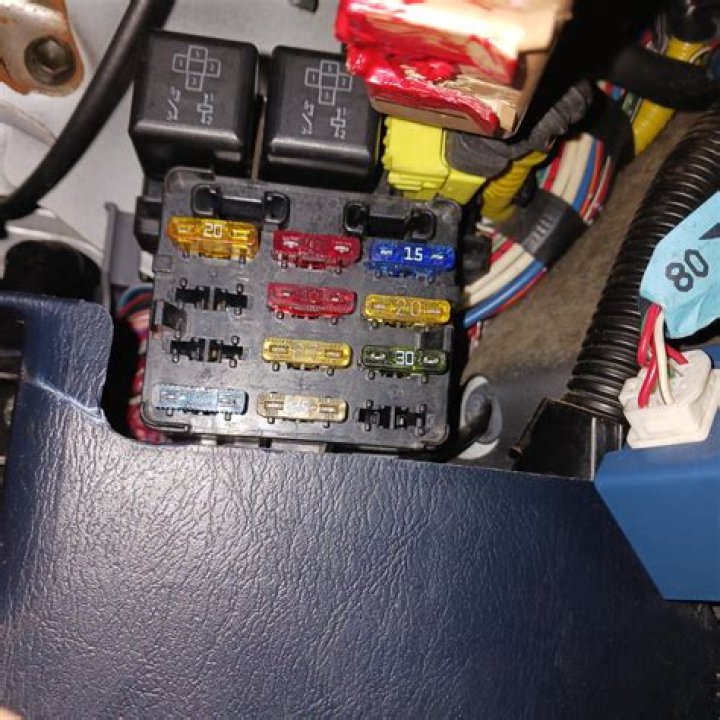

Where is the fuse for the gauges?

Look along the left side of the panel, where the door would cover when closed. Also, try under the hood—often there is a box labeled “Electrical Center” or “Fuse Panel” near the front fender wells.

Is there a fuse for the gauge cluster?

The fuse may be labeled gauges, cluster, or something similar. This fuse should have power on both sides with the ignition in the on position. If the fuses check out okay, then check for power at the instrument cluster. If the instrument cluster has power, then check for ground.

Where is the fuse for the instrument cluster on a 2003 Chevy Silverado?

The instrument cluster fuse is located in the instrument panel on the 2003 Chevrolet Silverado.

Where is the instrument cluster fuse on a 2005 Chevy Silverado?

The 2005 Chevy Silverado instrument cluster fuse can be found in the fuse panel that is located under the dash on the driver’s side beneath the steering wheel. You can use the cover that is on the panel to determine which fuse goes to the instrument cluster.

What is the gauge fuse?

: an instrument for cutting fuses that consists of a block with a brass scale on one side and a hinged knife.

What does the cluster fuse control?

Sensors in the vehicle generate signals that send to the car’s computer. The computer converts them into something that can be read by the instrument cluster. What is this? If one doesn’t work, such as the speedometer, how can you tell if it’s a problem with the entire instrument cluster or something else?

Where is the fuse box on a 2004 Silverado?

Helpful Expert Reply: If you pop the hood on your 2004 Chevy Silverado there will be a fuse box on the driver side of the engine bay that will have a lid you can remove that will give you access to the fuses.

What is 4WS fuse Chevy Silverado?

4WS 15A Rear Wheel Steering Control Module, Evaporative Emission (EVAP) Canister Vent Solenoid. RR HVAC 30A I-IVAC Control Assembly-Rear Auxiliary. AUX PWR 20A Accessory Power Outlets. Auxiliary Power Outlets.

Where is the fuse for a 2006 Chevy Silverado?

On Silverado’s and Sierra’s the engine fuse box is located on the right side of the engine bay when facing it, close to the top right corner. See the below picture for the location on 1999-2006 trucks.

Where is the fuse box in a 2005 Chevy Silverado 1500?

The fuse box is located on the driver’s side of the instrument panel, behind the cover.

What is the TBC fuse?

UPDATE: I found out the TBC is the fuse for the Body Control Module.

What is PDM fuse?

Power Distribution Modules (PDM) for vehicles or commercial equipment feature multiple electrical power outputs, acceptance of many fuses, fuse types & relays and allow for custom configuration.

Where is the trailer light fuse on a 2004 Chevy Silverado?

The brake light fuse in a 2004 chevy silverado is located in the fuse panel under the driver’s steering wheel.

Where is the fuse box on a Chevy Silverado?

Engine Compartment Fuse Box

It is located in the engine compartment on the driver’s side.

What does DRL fuse mean?

Locate the “DRL” or “Daytime Running Lamp” fuse. If you are unsure of the fuse location, consult your vehicle’s owner’s manual. Remove the “DRL” fuse from the fuse box and replace it with a new fuse.

What fuse is for trailer lights Chevy Silverado?

The fuses that control the trailer lights are in slot Nos.14, 15, 16 and 17. Pull each fuse out, using the puller, and inspect the metal strip within the plastic casing. If it is burnt or broken, install a new fuse with an identical amperage rating.

Why wont my trailer lights work?

Because the most common reason for trailer lights not working properly is a bad or missing ground, check the trailer’s and truck’s ground connection first. A poor ground often becomes the culprit when only some lighting functions are working and when lights go out when you push the brake pedal.

What fuse is for trailer running lights on 06 Chevy Silverado?

Fuse 25 is your trailer park lamps.

Where is the fuse for the trailer lights on a 2015 Chevy Silverado?

If you are looking for the fuses on your 2015 Chevrolet Silverado 1500 that are tied to your trailer wiring then those will be in the fuse box in the engine compartment.

Where is the tow package fuse GMC Sierra?

Trailer fuses are found in the underhood fuse block. Fuse 1 is your trailer Right stop/turn lamp.

What is a Euro trailer?

EUROTRAILERS are low loaders with hydraulically steered axles or axle lines. Since 1953, Nooteboom has been setting the trend in designing and manufacturing low loaders. … Up until this day, our EUROTRAILER low loaders have been leading in the special transport market.
